wound onto carriers for immediate use within the facility or for large coil shipments. For wire sizes exceeding 16 mm, productivity can also be improved by incorporating an inline cutter pointing machine and a horizontal arm revolving payoff with a push feeding system.

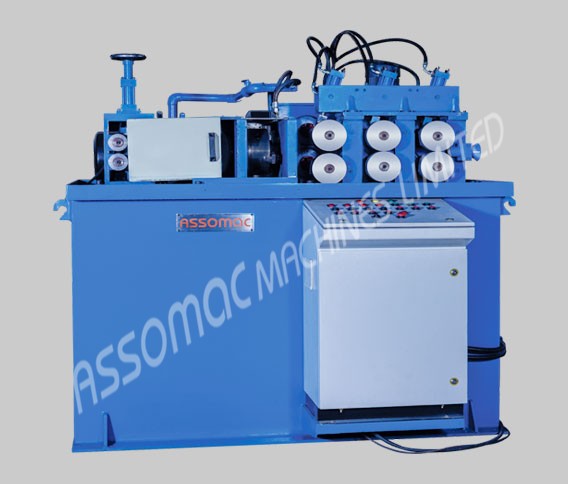

Inverted Vertical Drawing Blocks
Overview
The utilization of inverted drawing machines is steadily rising for producing cold heading quality wire from high carbon wires, stainless steel wires, and various types of alloy wires with thicker gauges and larger coil weights. These machines significantly enhance efficiency since the drawing process occurs from coil to coil, with the drawn wires being directly transferred to the next stage.
Specification
Technical Specifications
| Block Diameter (mm) | 1400 | 1200 | 1000 | 900 | 800 | 700 | 600 |
| Wire Size Range (mm) | 40 - 16 | 36 - 14 | 32 - 8 | 25 - 6 | 20 - 4 | 14 - 3 | 7 - 2 |
| Motor KW Range | 200 - 125 | 160 - 90 | 125 - 55 | 75 - 45 | 55 - 30 | 45 - 22 | 30 - 15 |
| Speed Range (mtrs./min.) | 10 - 30 | 10 - 40 | 15 - 55 | 20 - 75 | 30 - 100 | 45 - 120 | 60 - 150 |
| Max. Coil Weight (kgs.) | 2500 | 2500 | 2500 | 2000 | 2000 | 1500 | 1000 |
