- Automatic wrapping machine designed to accommodate a wide range of coil outer diameters (OD) and inner diameters (ID).
- Capable of wrapping multiple coils using a single roll of wrapping material.
- supports both unwrapping and rewinding functionality.
- Offers variable overlap of packing material through speed control to meet specific requirements.
- Adjustable machine height to suit different coil OD and ID specifications.
- Tension of the packing tape can be adjusted. Automatic tape cutting at the completion of the coil length.
- Features pneumatic coil extraction upon completion.

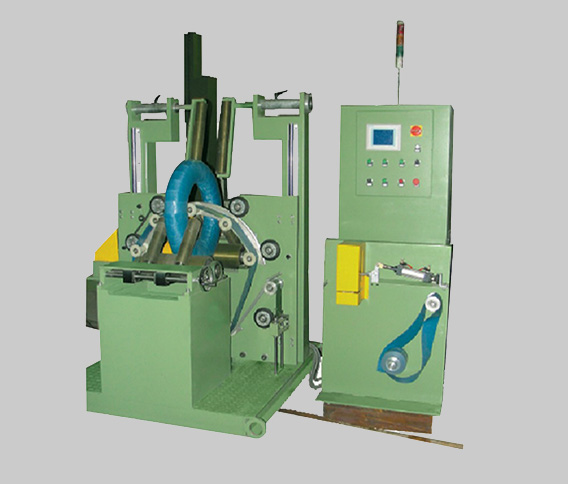

Wire Coiler Packing Machine
Overview
We are a leading manufacturer of wire coiler packing machines.
Key Features
Technical Specifications
| Model No. | AML WR-400 | AML WR-500 | AML WR-800 |
| Metal width | < 400 mm | < 500mm | < 800mm |
| Metal OD | < 1500 mm | < 1600 mm | < 1800mm |
| Metal ID | > 508mm | > 508mm | > 508mm |
| Packing material | W:90mm ID:54mm OD: 600mm | W:90mm ID:54mm OD: 600mm | W:90mm ID:54mm OD: 600mm |
| Roller Speed | 2.5m/min | 2.5m/min | 2.5m/min |
| Rotating Speed | 50r/min | 50r/min | 30r/min |
| Roller loading | 3000 Kg | 4000 Kg | 8000 Kg |
| Power output | 7.5 HP | 10 HP | 15 HP |
