- Suitable for drawing materials such as Mild Steel, Carbon Steel, Stainless Steel, Copper, Aluminum, and their alloys.
- Equipped with high-speed timing belt transmission for energy efficiency and reduced maintenance.
- Features solid Tungsten Carbide drawing cones for extended service life, or Alloy Steel T.C. coated drawing cones for a more economical option.
- Offers submerged lubrication or splash lubrication alternatives.
- Available in support cone or full drawing cone designs.
- Lubricant cooling system includes a highly efficient insulated plate-type heat exchanger or a centralized lubrication system.
- Cones and shaft assemblies are easily removable for maintenance, with an option for centralized grease lubrication.
- Incorporates a dancer system at the wire exit to synchronize wire collection at the spooler.
- Horizontal spooler designed to accommodate specific weight requirements with either Pneumatic or Mechanical Screw Clamping.
- Capable of operating in tandem with multi-pass dry drawing machines.
- The lubricant recirculation system is managed through a fluid pump, an overflow system, and a manual release valve.

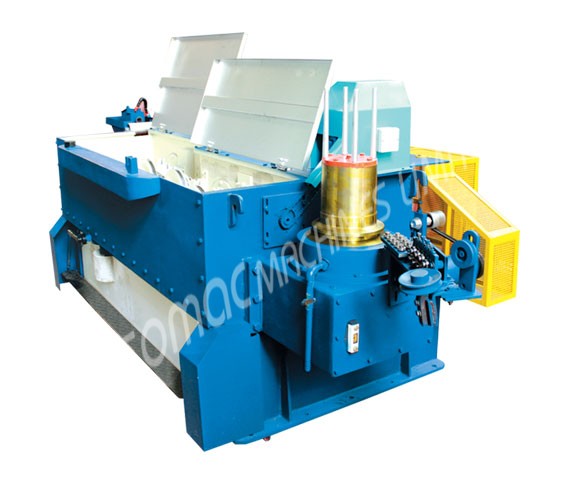

Wet Wire Drawing Machine
Overview
ASSOMAC provides advanced high-speed slip-type wet wire drawing machines designed for both ferrous and non-ferrous wires and their alloys. Custom-built options are available to meet customer specifications for producing intermediate and fine wires. The equipment features multiple spindles (ranging from 3 to 7) and multiple dies (from 7 to 23), and includes step cone type wet drawing machines that can utilize soap-based or oil-based lubricants. These machines come with options for a Finishing Drum, Finishing Ring, or Spooler—either alone or in combination—offering various capstan diameters and spool sizes as needed.
